Product Description
Specification
| Application | Hotel |
| Design Style | Modern |
| Place of Origin | China |
| Province | Shanghai |
| Panel Material | Nonmetal |
| Product name | Anti Earthquake Easy Installation Fiber Cement Eps Wall Panel |
| Production capacity | 300000m2/month |
| Length | 2270mm/2440mm/3000mm |
| Width | 610mm |
| Thickness | 50-210mm |
| Color | Grey |
| Application | Building |
| Advantage | Light Weight |
| Core | Fly Ash.etc |
| Features | Anti-earthquake |

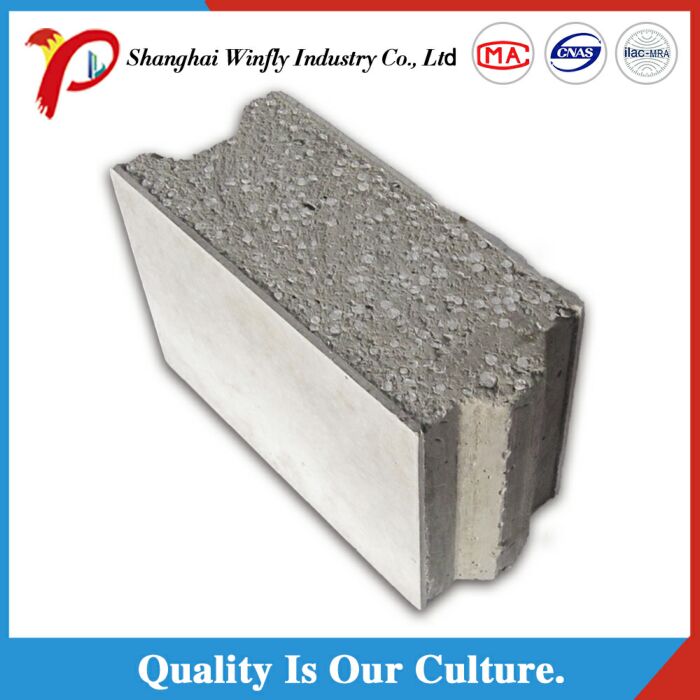

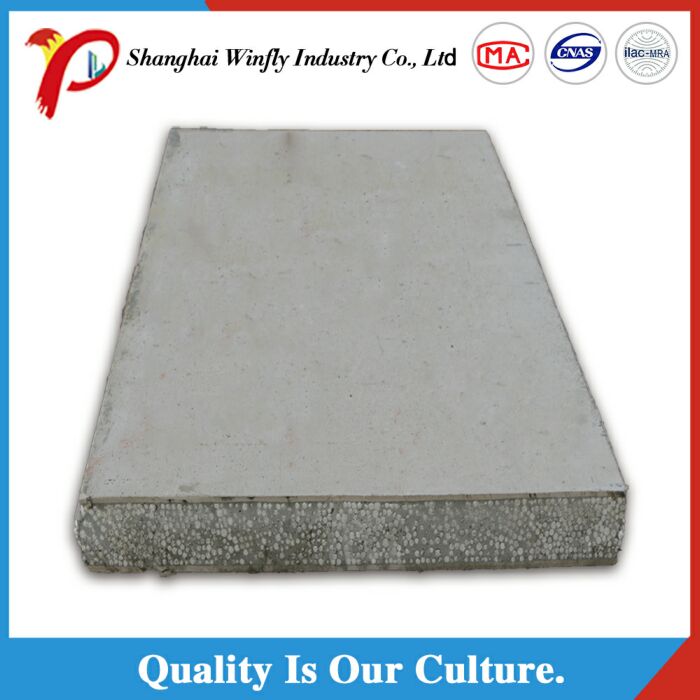

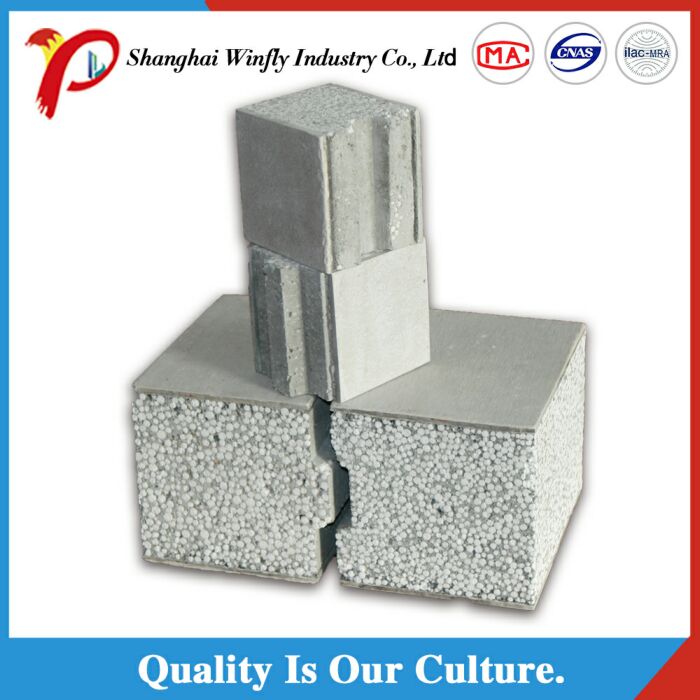

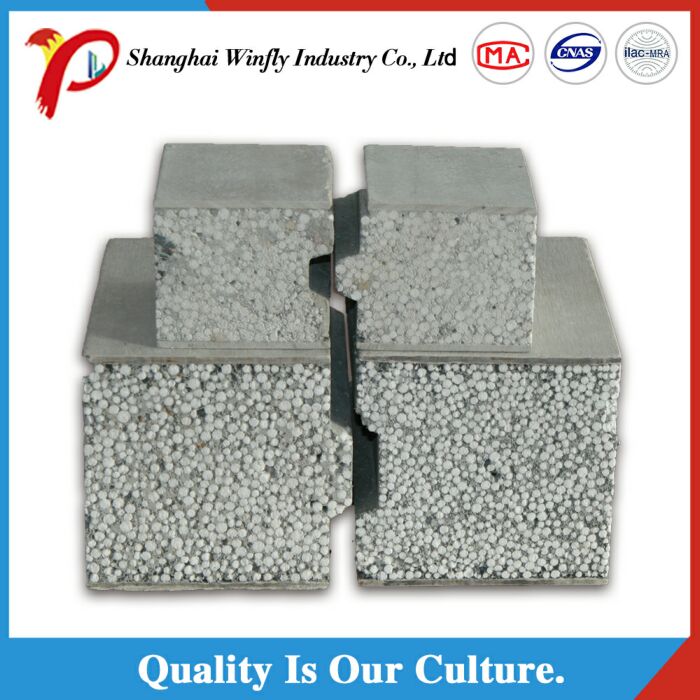

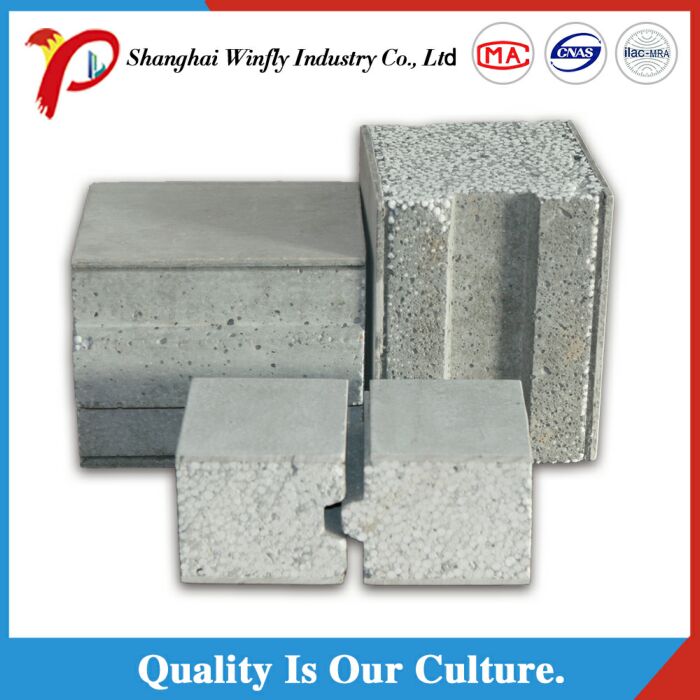

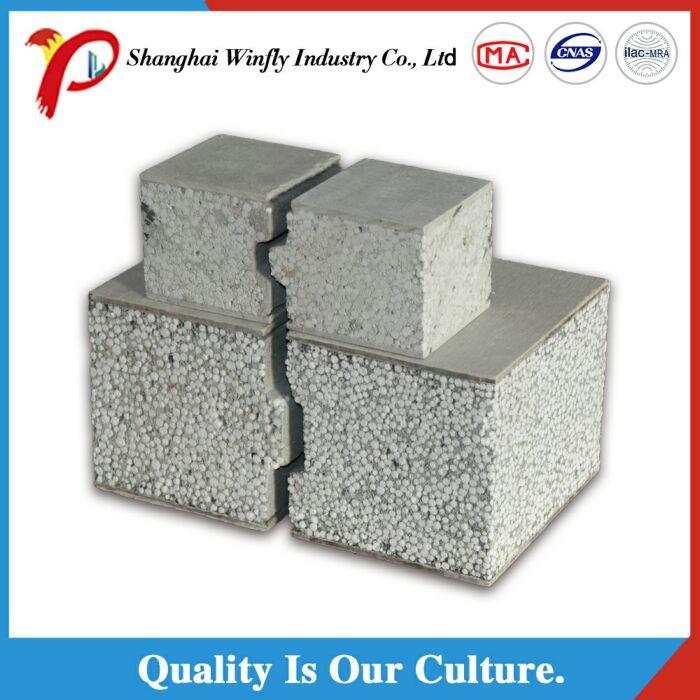

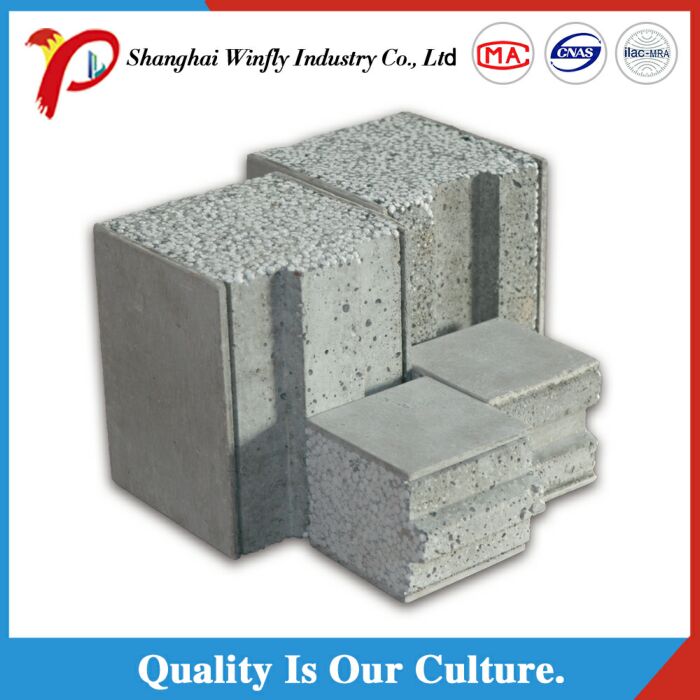

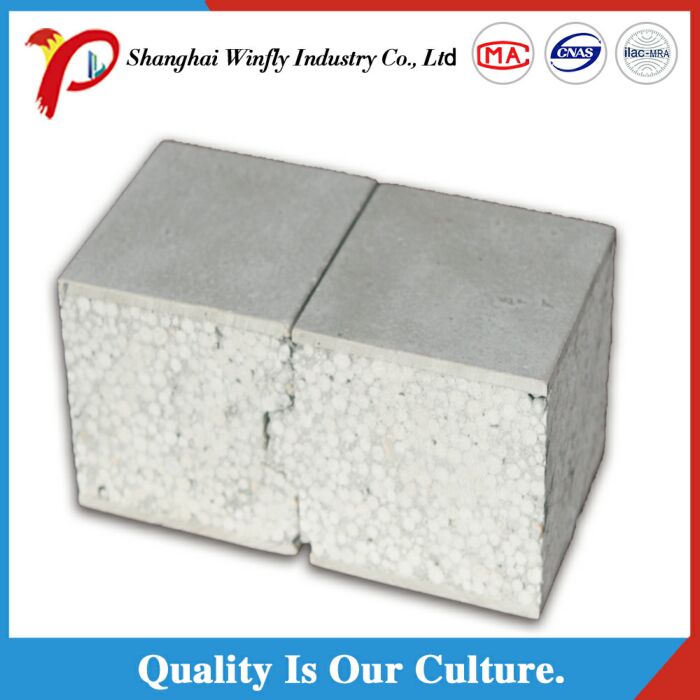

What is eps cement sandwich panel?
Eps cement sandwich panel is a kind of light weight energy saving wall material with reinforced calcium silicate board as surface panel, cement, EPS, fly ash as core material and forming by one time compound.
It has features of light weight, high intensity, thin, waterproof and fire proof, heat preservation, sound insulation, quakeproof, low cost and space-saving. Eps cement sandwich panel IS widely applied to interior wall partition, exterior wall and roof for all kind of constructions. Its birth marks the wall material will appear renewal trend, instead of traditional block, the new architectural thoughts and its outstanding performance can meet the requirements of modern architectural environment.

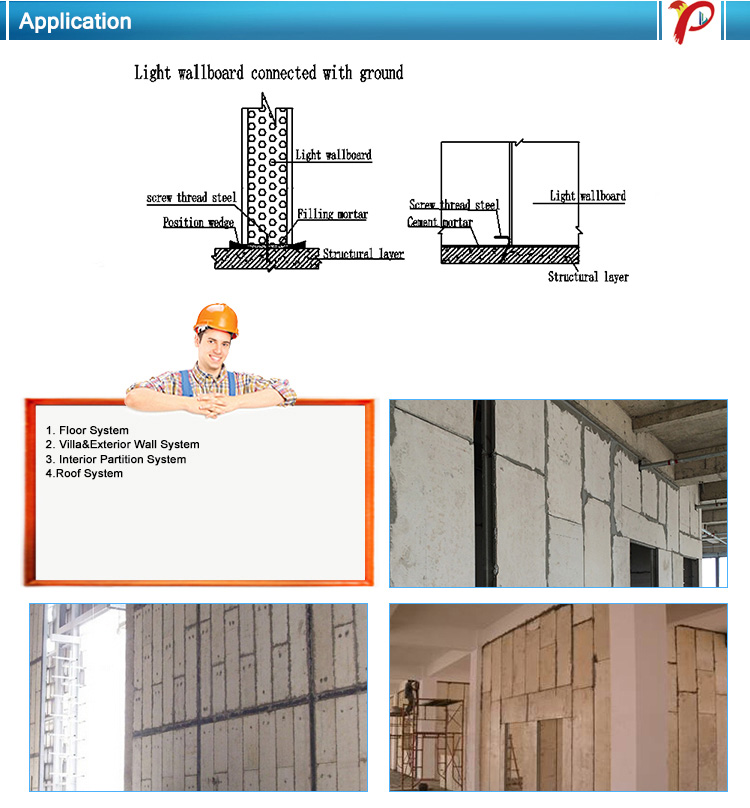

1. Floor System
Itcan be innovatively used as floor board. Besides the basic characteristics like sound insulation, waterproof,dampproof, this system has the outstanding advantages such as hight load-bearing capacity, antistatic electricity, friction resistance, high strength, convenient for wire groove and water pipe inbuilt, corrosion resistance, no deformation, no split, etc., which is much suitable for the fields including the floor plate of additional top floor, factory, workshop, warehouse, etc.
2. Villa&Exterior Wall System
Itcan automatically adjust indoor air and water content with the season and climate changes, which can keep the temperature at an invariable temperature level, and such ecology effect just goes with the tide of modern residential building. It is widely applied to various modular house, low buildings, apartment, villas, and city house
3. Interior Partition System
With excellent fireproof, best hanging force, sound insulation, heat insulation, waterproof, easy Installation and the like characteristics, light weight compound sandwich board have been widely applying to the special
positions like partition panel of high-rise and mega-high-rise buildings.
4. Roof System
This system not only solves the problem of roof leakage, but also has the advantages such as heat insulation, neat joint surface, high temperature resistance, etc. The features of light weight and hight strength reduce the use of roof beamcolumn, reduce the consumption of materials, improve security; its easy construction time, which bring out its hight integrated performance-price ratio.
What is feature of eps cement sandwich panel?
1. Heat Preservation: Major material is antifreezing, heat preserving and environmental friendly.
2. Heat Insulation: Adjust the indoor temperature at a constant range.
3. FireProof: 4.5mm calcium silicateboard is fireproof, Eps & Cement sandwich panel can be against a high temperature for 4 hours.
4. WaterProof: Experiment has proved that water pool can be made byEps and Cement sandwich panel without absorbing any water and no leakage at all after one year.
5. Sound Insulation: The inside of wall panel material (EPS polystyrene grain) has fine sound insulation and sound absorbing function.
6. Easy to Install: Using our installation material (PU foam and Cement Adhesive) is easy to build house.
7. Labor Cost Saving: As wall panel is easy and fast to construct, the labors can be cut down in the same work & time.
8. High Intension: Eps & Cement sandwich wall panel can be nailed directly or hang heavies, it can be decorated by ceramic tile, wall paper and any decorations you like.
9. Earthquake Resistance: The quakeproof performance ofEps & Cement sandwich wall panel is more than 8.5.
10. Space and cost Saving: 50 to 200mm,which is more thinner than the traditional block, so it can save a lot of construction space, meanwhile, the constructure cost can also be saved instead of using the thick traditional blocks.
| Thickness(mm) | Length(mm) | Width(mm) | Reference weight(kg/m2) | Fire Rated(h) | Allow tolerance(mm) |
| 60 | 2270 2400 2440 2700 3000 | 610 | 45±5 | 1 | Length ±5 Width±2 Thickness±1 Flatness±1 |
| 75 | 60±5 | 2.5 | |||
| 90 | 80±10 | 4 | |||
| 120 | 100±10 | 4 | |||
| 150 | 120±10 | 4 | |||
| 180 | 140±10 | 4 | |||
| Please note that 75 90 120 150 180mm are in stock now other thickness can be manufactured too EPS cement Sandwich panel size (Production capacity :180,000m2/month one shift) | |||||
Product Description
Company Profile
Certifications
Group Photo Of Customers & Team
Product packaging
FAQ
1. Who are we?
We are based in Shanghai, China, start from 2015, sell to Western Europe(18.00%), North America(15.00%), Oceania(11.00%), Africa(9.00%), Northern Europe(8.00%), Central America(8.00%), Eastern Europe(6.00%), South America(5.00%), Southeast Asia(5.00%), South Asia(5.00%), Southern Europe(5.00%), Eastern Asia(3.00%), Mid East(2.00%). There are total about 51-100 people in our office.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.What can you buy from us?
3D wall brick sticker and other related products.
4. Why should you buy from us not from other suppliers?
More than 20 years manufacturing experience and we can provide customers with customized products, fast delivery time, after sale service report.
5. What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, CIP, FCA, DDP, DDU；
Accepted Payment Currency: USD, EUR, AUD, CNY;
Accepted Payment Type: T/T, L/C, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow;
Language Spoken: English, Chinese, Janpanese
